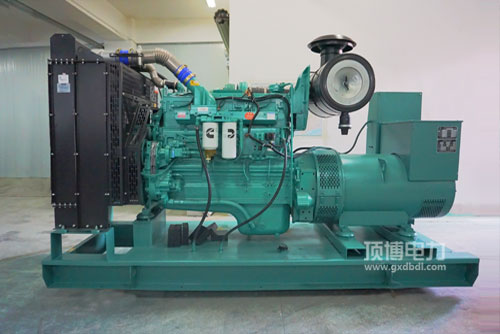

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯并网发电用打火机然油生活性好: 一流的然油设定整体，独具特色的STC、ESTC 分类设定整体，特俗设计的概念的活塞环顶部燃燒室，高压低压发射然油，加以雾化吸入，燃燒加以。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电机组用发起机瞬态效能比较好: 美好的发起机整体风格构思，做好康明斯鲜明的EFC体统，把控精确高，死机周期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用起驱力升公率高: 一体化构思紧凑型轿车.性能安装合理化，操作市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷仪器 QSNT. QSK19. QSK38. QSK50需要满足国内 非方向三是时期及北美洲Tier2. Tier 3直接排放规范的标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零部件必须性好， 起主观因素作业及维保的保养快速，直接费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作功率领域 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L看上去尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品 Dry Weight   940kg

224-310KW康明斯带发电用发起机的性能：质量小， 降低变高， 防雨百叶的空气升温，也容易通电，位移车载一体机供电的必选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启驱动力机型	选用功效(kW)Prime Power	备品马力kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
